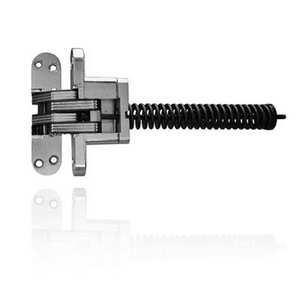

SOSS Model 218IC

The SOSS Invisible Spring Closer™ gives you a spring closer that is totally invisible from either side when the door is closed. When the door is open, you see only the hinge face and links.

The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the spring closer. Installation can be either inside the door itself or inside the door jamb. Allow one spring closer for each 75 lbs. of door weight for all spring closers.

The SOSS Invisible Spring Closer is ideally suited for all types of doors 1-3/8" (216IC), 1-3/4" (218IC), and 2" (220IC) thick. Recommended spacing is one half of the distance from the center of the door to the center of the top hinge.

• Security - When closed, the SOSS Invisible Hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
• Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
• Strength - The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger, more rigid installation.
• Superior Construction - SOSS Invisible Hinges are designed to give dependable operation for years. Standard hinges are made of high strength plated steel and heavy duty zinc alloy castings.
