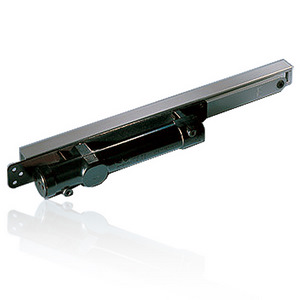

Dorma ITS96 Overhead Concealed Closer Package

Dorma Model ITS96

Concealed Door Closer

Application
Single Acting
Interior Doors up to 48" Wide
Exterior Doors up to up to 36" Wide (ITS96-25 Only)
1-3/4" Minimum Door Thickness (2" Minimum Thickness for ITS96-25)

Spring Size
Adjustable Size 1-3 (Standard, for 1-3/4" Min Thick Door or Greater)or Size 2-5 (Heavy, 2" Min Thick Door)

Hold Open
Specify Non-Hold Open (Standard) or with Optional Hold Open Kit

Handing
Non-handed

Finish
Specify 689 (Sprayed Aluminum) or 695 (Sprayed Dark Bronze)

File Downloads

Template

Installation

Catalog

Features
The ITS96 is suited for virtually any door and frame combination in a variety of leaf thicknesses and configurations.

• For Hinge or Offset Pivot* Applications
• Efficient cam and roller design
• Rapid decrease in opening force makes door easy to open, yet provides maximum closing force at the latch
• ITS96-13 installs in 1-3/4" thick doors (minimum); ITS96-25 installs in 2" thick doors (minimum)
• Suitable for interior wood, hollow metal, and aluminum doors and frames
• Adjustable size spring force for ITS96-13 is 1 to 3 and for ITS96-25 is 2 to 5. Adjustable with unit installed
• Sweep and latch valve adjustment easily accessible after installation
• Optional track mounted hold open kit adjustable between 80° and 120°
• Maximum door opening approximately 130°
• Cushioned stop position adjustable between 80º-130º (separate limiting stop required for doors in abusive conditions)

Technical Notes:
*Offset Top Pivot may conflict with closer & track. Substitute the top pivot with an additional intermediate pivot.
