Dorma RTS88 Closer Body -LAP

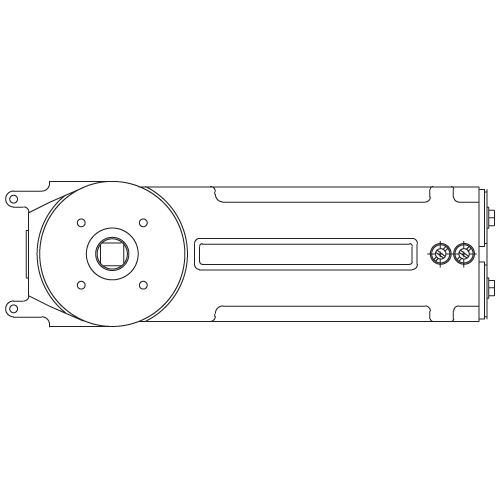

 Dorma RTS88 Closer Body -Less All Parts Dorma RTS88 Closer Body Drawing Dorma RTS88 Closer Body Dorma RTS88 Closer Body Dimensions |
|
MSRP: $622.00
Purchase Price: $354.55
Manufacturer: dormakaba USA
MFG Model #: RTS88
Specify Model Options
| Spring Size: |
|
| Hold Open: |
|
| Positive Dead Stop: |
|
* Whole number only
|
Dorma RTS88 Series Overhead Closer Body
Single/Double Acting Closer Body - Less All Parts
Application
Single or Double Acting
Exterior or Interior Doors
Weight to 250 lbs.
Door Sizes up to 4'-0" Interior and 3'-6" Exterior
Spring Size
Specify Size BFI, BFE, 2, 3 or 4
Hold Open
Specify Hold Open (HO) or Non-Hold Open (NHO)
Positive Dead Stop
Specify 90 or 105 Degree
Handing
Non-handed
Finish
Not Applicable
Notes
Not all options available for all sizes. Size 2 only available in 90° (for 105° Size 2 application, substitute for the RTS88 BFE). BFE/BFI are available in 105° NHO or HO only.
Features
The RTS88 is designed to give lasting, dependable service where surface applied units and other types of closers are not suitable, or would interfere with the architectural design. For use in a variety of application packages for single and double-acting wood, aluminum or hollow metal doors and frames.
- Compact closer body is designed to fit into headers as small as 1-3/4" x 4"
- Closer body is non-handed
- One closer for both single-acting or double-acting doors
- Accommodates a maximum door weight of 250 lbs.
- A pressure relief valve protects closer from damage caused by forced closing
- An integral positive stop limits door swing to 90° or 105°
- A mechanical back-check slows down the door prior to contact with the positive stop
- Complete Packages are also available for side load, end load, and offset slide arm applications
