Rixson 101020 Duo-Chek Top Pivot

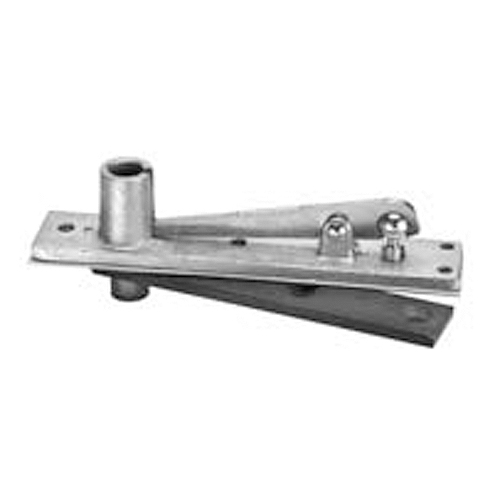

101020 Center Hung Top Pivot

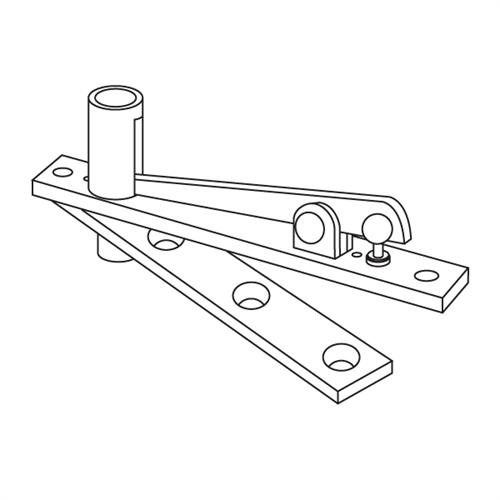

101020 Center Hung Top Pivot101020 Center Hung Top Pivot Drawing101020 Center Hung Top Pivot Dimensions
MSRP: $204.00
Purchase Price: $122.40
Manufacturer: Rixson
MFG Model #: 101020

Specify Model Options

Finish:
Rixson

Rixson Model 101020 Top Pivot

Center Hung Light-Duty Top Pivot for use with Rixson Duo-Chek Floor Closers

DISCONTINUED BY RIXSON
While Supplies Last

Application
Center Hung
Fully Concealed
Walking Beam Type 1/2" Dia.

Handing
Non-handed

DownloadsFile Downloads

Features
Standard top pivot for Rixson Duo-Chek® Model 10, 12, 15 and 16 Floor Closers

  • Walking beam-type pivot 1/2" diameter pivot pin with 3/4" engagement
  • Oil-impregnated sintered bronze bearing
  • Completely concealed when door is closed
  • Furnished with wood and machine screws

Finish
Specify 605, 606, 612, 613, 625 or 626

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
625
(US26)
626
(US26D)
