Rixson 119 3/4" Offset Intermediate Pivot

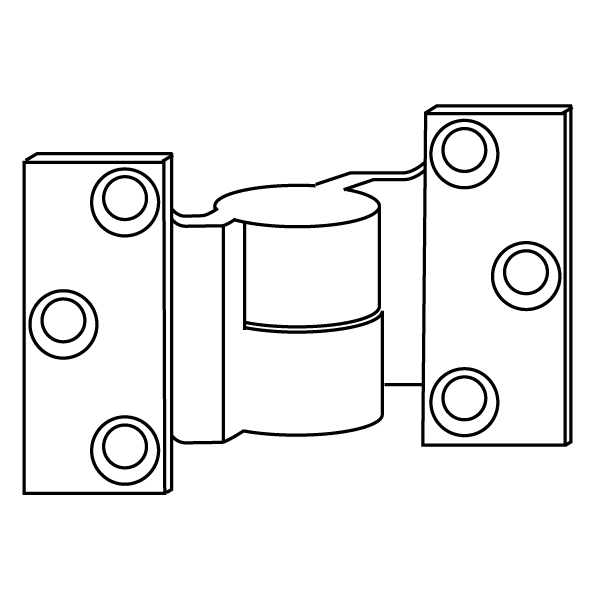

Rixson Model 119 Intermediate Pivot

3/4" Offset Light Duty Intermediate Pivot

Application
Full Mortise
ANSI C07382

Handing
Specify LH or RH

File Downloads

Template

Install

Cut Sheet

Features

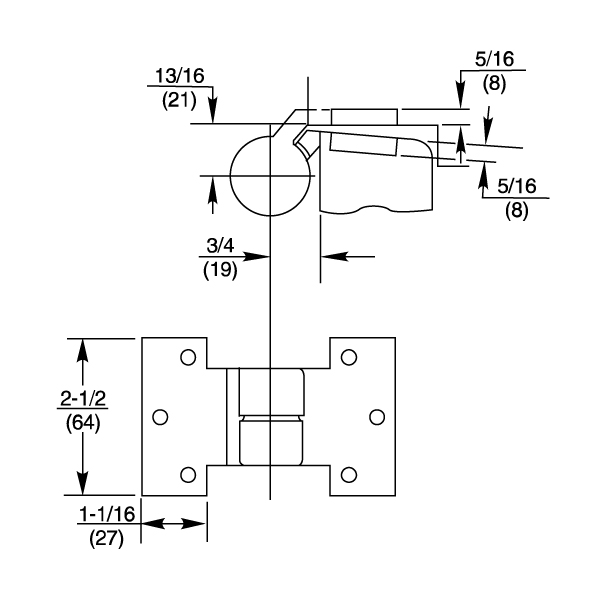

• 3/4" offset application
• Maintains door alignment
• For use with with Rixson Model 117, 117-1/4 and 195 pivot sets
• Non load-bearing
• Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
• Non-ferrous base material
• Furnished with wood and machine screws

Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.

Finish
Specify 613 or 626

Dark Bronze	Satin Chrome
613 (US10B)	626 (US26D)
