Rixson 128-3/4 Light-Duty Center Hung Pivot Set

Rixson Model 128-3/4 Pivot Set

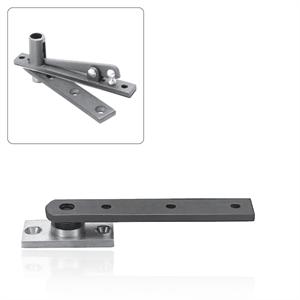

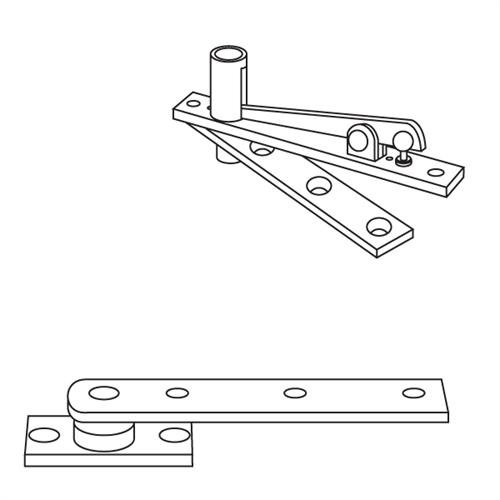

Light-Duty Commercial Grade Center Hung Pivot Set - Includes Top and Bottom Pivot

Application
Center Hung Pivot Hinge
Double or Single Acting
Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'-6" W x 8'-6" H
1-3/8" Minimum Door Thickness
ANSI C07042

Handing
Non-handed

Features

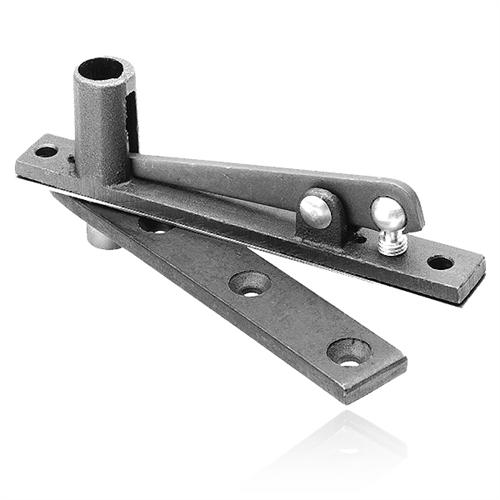

Complete set includes bottom pivot and Rixson Model 320 Top Pivot

• Bottom pivot surface mounted or mortised into floor
• Top pivot mortised into top jamb
• Double acting unless stopped by some means on the door frame
• Pivot point centered in thickness of door
• Door must have radius on pivot edge
• Weight of door borne by floor
• Doors do not return to center
• Furnished with wood and machine screws
• Select finish for Top Pivot Cover and Bottom Pivot Base

File Downloads

Template

Installation

Cut Sheet

Finish
Specify 605, 606, 612, 613, 618, 619, 622, 625 or 626

Bright Brass	Satin Brass	Satin Bronze	Dark Bronze	Bright Nickel	Satin Nickel	Matte Black	Bright Chrome	Satin Chrome
605 (US3)	606 (US4)	612 (US10)	613 (US10B)	618 (US14)	619 (US15)	622 (US19)	625 (US26)	626 (US26D)
