Rixson 176 Center Hung Pivot Set

176 Center Hung Pivot Set

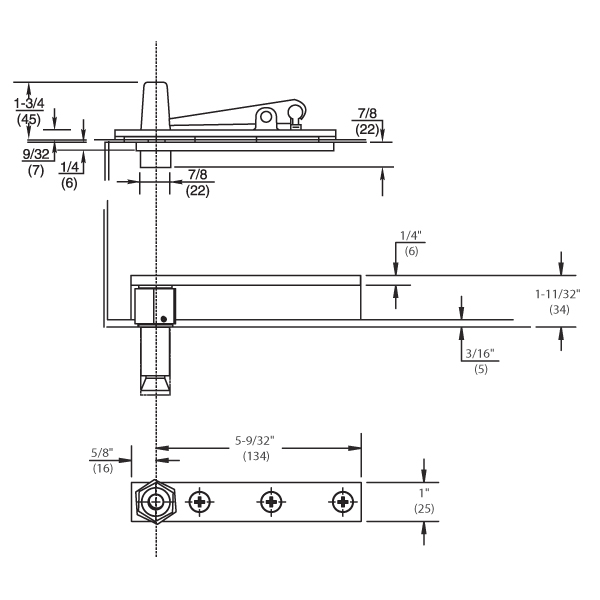

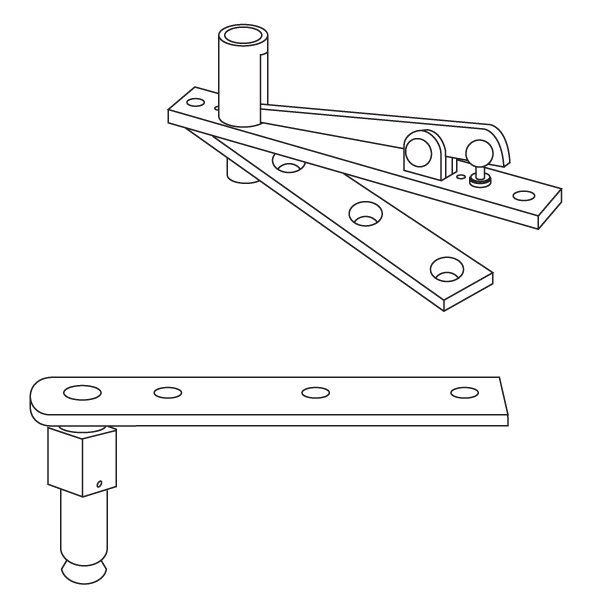

176 Center Hung Pivot Set176 Center Hung Pivot Set Drawing176 Center Hung Pivot Set Dimensions
MSRP: $423.00
Purchase Price: $253.80
Manufacturer: Rixson
MFG Model #: 176-626

Specify Model Options

Finish:
Rixson

Rixson Model 176 Pivot Set

Light-Duty Center Hung Pivot Set - Includes Top and Bottom Pivot

Application
Center Hung
Double or Single Acting
Interior Doors
Weight to 150 lbs.
Door Sizes up to 3' W x 8' H
1-3/8" to 1-3/4" Thick Door
BHMA/ANSI: C07032

Handing
Non-handed

DownloadsFile Downloads

Features
Complete set includes bottom pivot and Rixson Model 320 Top Pivot

  • Bottom pivot mounts directly to concrete floor
  • Pivot point centered in thickness of the door
  • Door must have radius on pivot edge
  • Not allowed for use on labeled doors and frames
  • Furnished with wood and machine screws
  • 3/8" vertical adjustment
  • Select finish for top pivot cover plate, bottom pivot finish n/a

Finish
Specify 605, 606, 612, 613, 618, 619, 622, 625 or 626

Bright
Brass		 Satin
Brass		 Satin
Bronze		 Dark
Bronze		 Bright
Nickel		 Satin
Nickel		 Matte
Black		 Bright
Chrome		 Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 618 - Bright Nickel 619 - Satin Nickel 622 - Matte Black 625 - Bright Chrome 626 - Satin Chrome
605
(US3)		 606
(US4)		 612
(US10)		 613
(US10B)		 618
(US14)		 619
(US15)		 622
(US19)		 625
(US26)		 626
(US26D)

Related Products

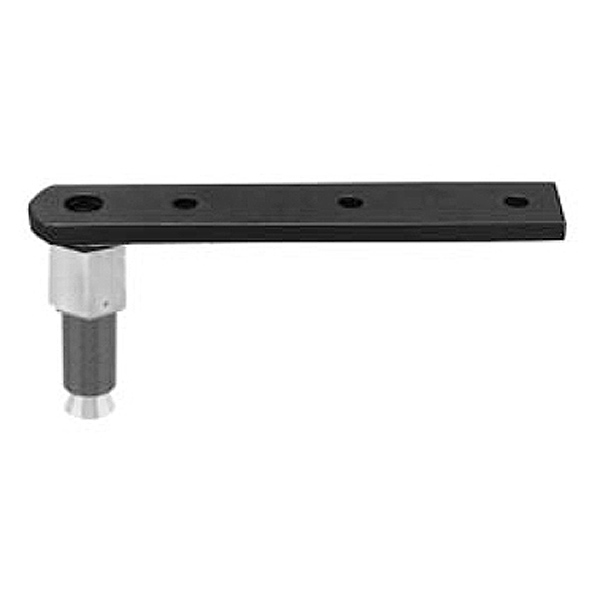

176 Center Hung Pivot Bottom Portion
