Rixson 180x1.5 1/-1/2" Offset Top Pivot

Rixson Model 180x1.5 Top Pivot

1-1/2" Offset Top Pivot

Application
Full Mortise
1-1/2" Offset

Handing
Non-handed

Features

• Standard top pivot for most 1-1/2" offset pivot sets and floor closers
• Oil-impregnated sintered bronze bearing
• Non-ferrous base metal

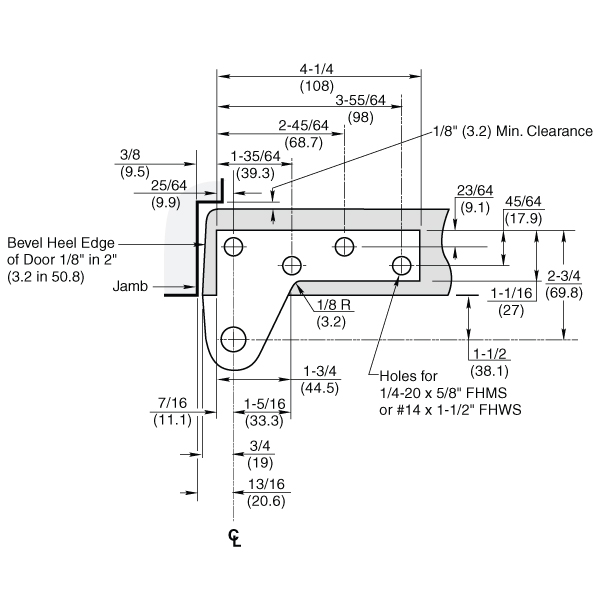

• 1-1/2" offset (measured from centerline of pivot to face of door)
• Furnished with wood and machine screws

Finish
Specify 605, 606, 612, 613, 625 or 626

Bright Brass	Satin Brass	Satin Bronze	Dark Bronze	Bright Chrome	Satin Chrome
605 (US3)	606 (US4)	612 (US10)	613 (US10B)	625 (US26)	626 (US26D)
