Rixson L147 Heavy Duty Offset Pivot Set

L147 Pivot Set

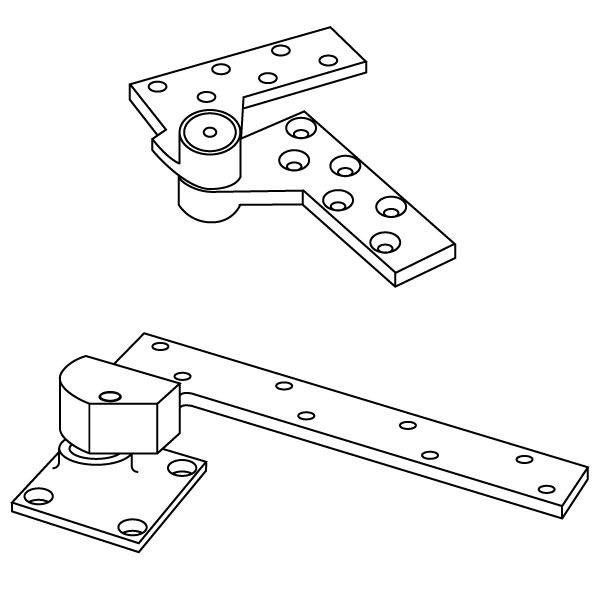

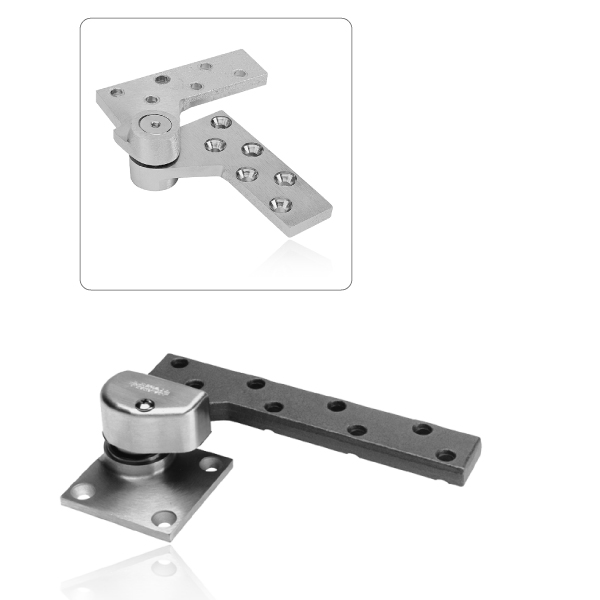

L147 Pivot SetL147 Pivot DrawingL147 Bottom PivotL180 Heavy-Duty Top PivotL147 Pivot Set Dimensions
MSRP: $1,354.00
Purchase Price: $812.40
Manufacturer: Rixson
MFG Model #: L147

Specify Model Options

Handing:
Finish:
Rixson

Rixson Model L147 Pivot Set

3/4" Offset Lead Lined/Heavy/High Traffic Pivot Set - Includes Bottom and Top Pivot

Application
Exterior or Interior Doors
Lead-Lined/Heavy/High Traffic Doors
Weight to 1000 lbs.*
Door Width up to 3'-6"
1-3/4" Thick Door Standard
ANSI C07162

Handing
Specify LH or RH

Door Handing Diagram
DownloadsFile Downloads

Features
Complete set includes Rixson Model L180 Top Pivot

  • Bottom pivot mounts directly to floor
  • Designed for lead-lined doors with lead in center of door or heavy/high use applications
  • Screw holes in top pivot and bottom arm designed to straddle lead lining
  • Non-ferrous base metal
  • 3/4" offset (measured from center-line of pivot to face of door)
  • Door edges must be beveled 1/8" in 2"
  • Doors will swing 180 degrees, trim permitting
  • Furnished with wood and machine screws
  • Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
  • ML19 Intermediate Pivot(s) sold separately
  • Standard 1-3/4" door thickness stocked
  • 2", 2-1/4", 2-1/2" and 3" thick door packages available at an additional cost via factory order. Quotes available upon request.

Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.

Finish
Specify 605, 613 or 626

Bright
Brass		 Dark
Bronze		 Satin
Chrome
605 - Bright Brass 613 - Dark Bronze 626 - Satin Chrome
605
(US3)		 613
(US10B)		 626
(US26D)
