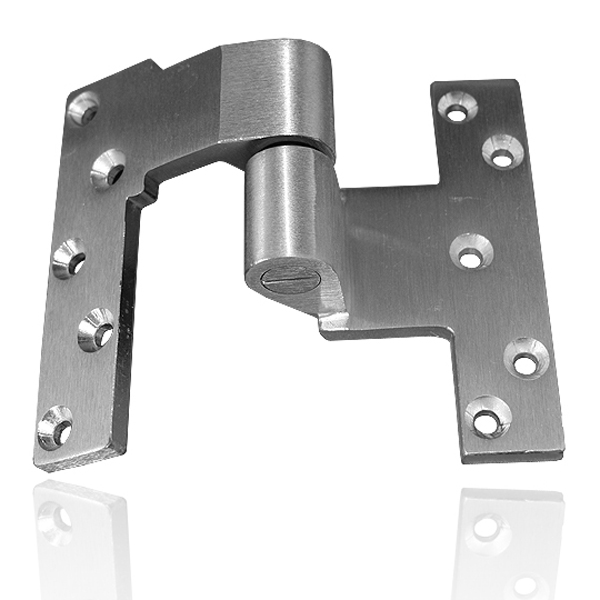

Dorma 15220 1-1/2 Offset Intermediate Pivot

<< Previous in Intermediate Pivots Next in Intermediate Pivots >>
Dorma 15220

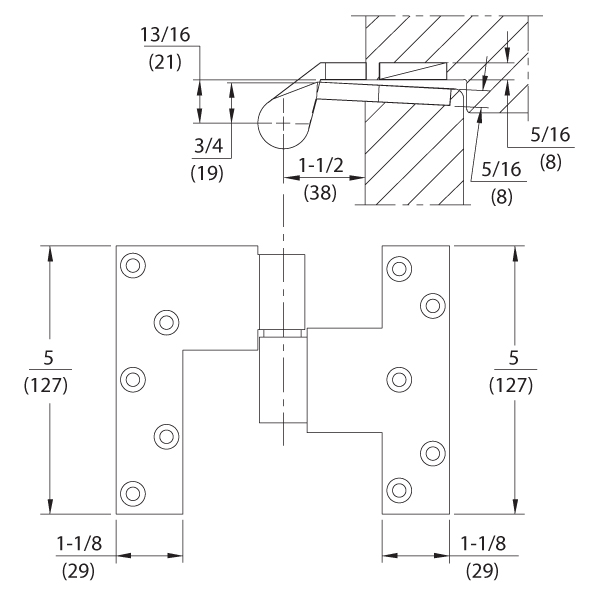

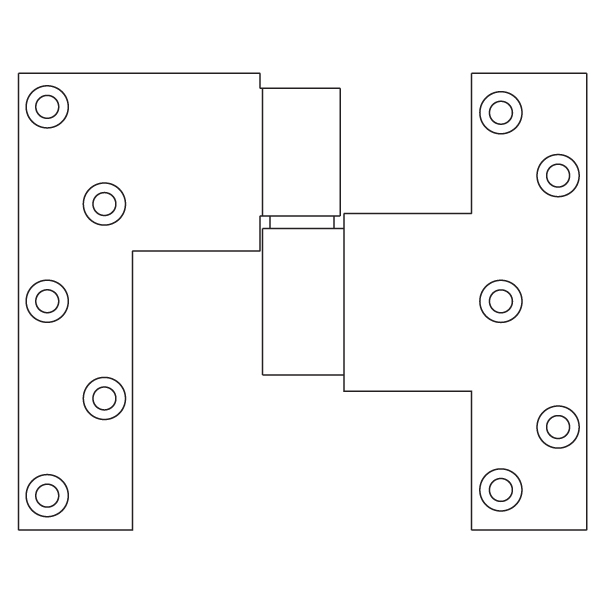

Dorma 1522015220 Drawing15220 Dimensions
MSRP: $335.00
Our Price: $201.00
Manufacturer: Dorma
Model: 15220

Specify Model Options
Dorma
Dorma Model 15220
1-1/2" Offset Intermediate Pivot

Application
Full Mortise

Handing
Specify LH or RH
Door Handing Diagram

Finish
Specify 613 or 626. Other finishes available via special factory order *

Bright
Brass*
Satin
Brass*
Satin
Bronze*
Dark
Bronze
Bright
Chrome*
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
625
(US26)
626
(US26D)

Features
  • Standard intermediate pivot for most 1-1/2" offset applications
  • Furnished with machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.

DownloadsFile Downloads
