Rixson 117 Light-Duty Offset Pivot Set

<< Previous in Offset Pivot Sets Next in Offset Pivot Sets >>

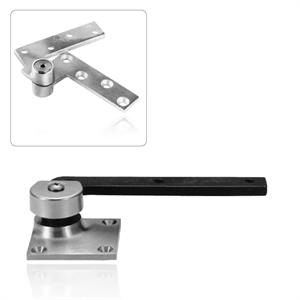

Rixson 117 Pivot
Rixson 117 Pivot117 Offset Pivot Drawing117 Offset Pivot Dimensions117 Offset Bottom Pivot180 Offset Top Pivot
MSRP: $415.00
Price: $227.25
Manufacturer: Rixson
MFG Model #: 117

Specify Model Options

Handing:
Finish:
Rixson

Rixson Model 117 Pivot Set

3/4" Offset Light-Duty Pivot Set - Includes Top and Bottom Pivot

Application
Single Acting
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'-8"
ANSI C07162/C07202

Handing
Specify LH or RH

Door Handing Diagram

Features
Model 117 Pivot Set includes Rixson Model 180 Top Pivot

  • Bottom pivot mortised into floor
  • 3/4" offset (measured from center-line of pivot to face of door)
  • Door edges must be beveled 1/8" in 2"
  • Doors will swing up to 180 degrees, trim permitting
  • Doors up to 90" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
  • Model 119 or M19 Intermediate Pivot(s) sold separately
  • Furnished with wood and machine screws

Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.

Finish
Specify 605, 606, 612, 613, 619, 625 or 626

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Satin
Nickel
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 619 - Satin Nickel 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
619
(US15)
625
(US26)
626
(US26D)
