Rixson 27 3/4 Offset Hung Closer Package

<< Previous in Offset Hung Floor Closers Next in Offset Hung Floor Closers >>

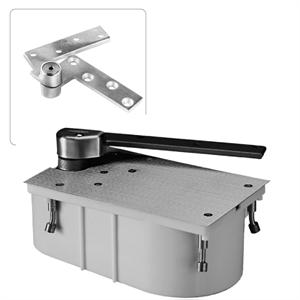

27 Floor Closer Package

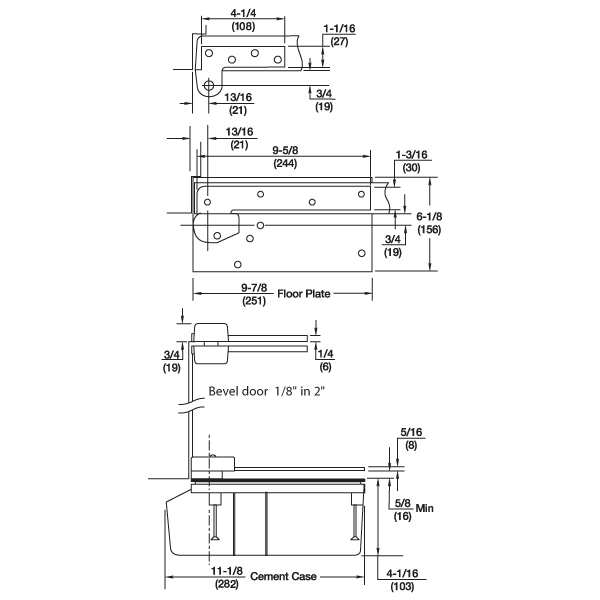

27 Floor Closer Package27 Drawing27 Dimensions27 Floor Portion180 Top Pivot
Price: From $932.40 to $1,000.80
Manufacturer: Rixson
MFG Model #: 27

Specify Model Options

Hold Open:
Dead Stop:
Handing:
Finish:

Additional Configurations

Closer Package Options
Rixson

Rixson Model 27 Door Closer

3/4" Offset Hung Concealed Floor Closer - Complete Package

Application
Single Acting
Exterior or Interior Doors
Weight to 450 lbs.
Door Sizes up to 4'-0"
ANSI C06041

Hold Open
Specify Non Hold Open (NHO) or Selective Hold Open (SHO)

Positive Dead Stop
Specify 90 or 105 Degree

Handing
Specify LH or RH

Door Handing Diagram
DownloadsFile Downloads

Features
Complete Package includes Rixson Model 27 Closer Body and Cement Case, Floor Plate, Bottom Arm Package and Model 180 Top Pivot

  • Available non-hold open (NHO) or selective hold open (SHO) at same degree as dead stop
  • Built-in positive dead stop prevents door from swinging beyond the desired opening degree (specify 90 or 105 degree)
  • Separate and independent valves for closing speed, latch speed and back-check
  • Cycolac cement case
  • Furnished with wood and machine screws
  • Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another. Rixson Model M19 intermediate pivots sold separately

Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
Listed specifications for models stocked and available for shipment from Epivots online store. Please call or email for Factory Order PH, DA, SC, CWF, extended spindles, or other special order configuration requirements.

Technical Notes:
All Rixson single acting closers have a preloaded spindle that causes the arm (door) to come to rest beyond the zero degree position approximately 5-7 degrees. This is to ensure the latch engages in the strike and to help overcome negative building pressures. This requires all frames to have integral or applied stops.

Finish
Specify 605, 606, 612, 613, 619, 625 or 626

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Satin
Nickel
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 619 - Satin Nickel 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
619
(US15)
625
(US26)
626
(US26D)
