Rixson 370 Center Hung Pivot Set

<< Previous in Center Hung Pivot Sets Next in Center Hung Pivot Sets >>

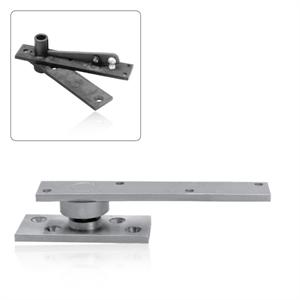

370 Center Hung Pivot Set
370 Center Hung Pivot Set370 Center Hung Pivot Set Drawing370 Center Hung Pivot Set Dimensions370 Center Hung Bottom Pivot Portion340 Center Hung Top Pivot
MSRP: $375.00
Our Price: $225.00
Manufacturer: Rixson
MFG Model #: 370

Specify Model Options

Finish:

Additional Configurations

Pivot Set Options
Rixson
Rixson Model 370
Medium-Duty Center Hung Pivot Set - Complete Package

Application
Center Hung
Double or Single Acting
Interior or Exterior Doors
Weight to 500 lbs.
Door Sizes up to 3'-8" W x 8'-6" H
1-3/4" Minimum Door Thickness
ANSI C07032

Handing
Non-handed

Finish
Specify 605, 606, 612, 613, 619, 625 or 626 (for Top Pivot Cover Plate and Bottom Pivot Base)

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Satin
Nickel
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 619 - Satin Nickel 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
619
(US15)
625
(US26)
626
(US26D)

Features
Complete set includes bottom pivot and Rixson Model 340 Top Pivot
Bottom pivot portion can be ordered separately, select "-less top pivot" option

  • Bottom pivot surface mounted or mortised into floor
  • Top pivot mortised into top jamb or header
  • Pivot features sealed bearing for protection against weather and debris
  • Double acting unless stopped by some means on the door frame
  • Pivot point centered in thickness of door
  • Door must have radius on pivot edge
  • Weight of door borne by floor
  • Doors do not return to center
  • Furnished with wood and machine screws
  • Extened spindles in 1/2" increments up to 2" extension available via special order

DownloadsFile Downloads
