SOSS 216 Concealed Hinge

<< Previous in SOSS Invisible Hinges Next in SOSS Invisible Hinges >>

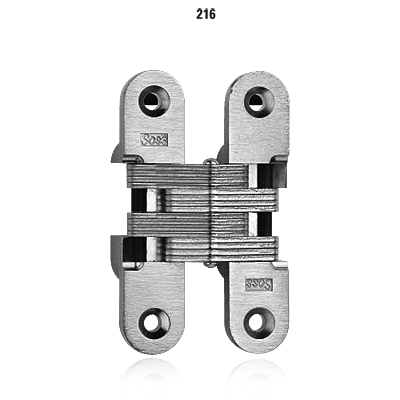

SOSS 216 Hinge
SOSS 216 Hinge216 Open Front View Dimensions216 Closed Front View Dimensions216 Open Top View Dimensions216 Closed Top View Dimensions
Price: From $30.40 to $56.60
Manufacturer: SOSS
MFG Model #: 216

Specify Model Options

Finish:
SOSS

SOSS Model 216 Concealed Hinges / Each

4-5/8" Invisible Hinge for Wood or Metal. - 1-3/8" Minimum Material Thickness

Application
Designed for 1-3/8" Thick Residential and Commercial Doors
Interior

Finish
Specify US4, US10BL*, US15, US19, US26, US26D

Satin
Brass
Dark
Bronze
Satin
Nickel
Matte
Black
Polished
Chrome
Satin
Chrome
US4 - Satin Brass US10BL* - Dark Bronze US15 - Satin Nickel US19 - Satin Nickel US26 - Polished Chrome US26D - Satin Chrome
US4
(606)
US10BL
(613)
US15
(619)
US19
(U622)
US26
(625)
US26D
(626)

Packaging
SOSS Model 216 hinges are priced and sold by the each.

Features
  • Security - When closed, the SOSS Invisible Hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
  • Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
  • Strength - The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger, more rigid installation.
  • Superior Construction - SOSS Invisible Hinges are designed to give dependable operation for years. Standard hinges are made of high strength plated steel and heavy duty zinc alloy castings.
DownloadsFile Downloads

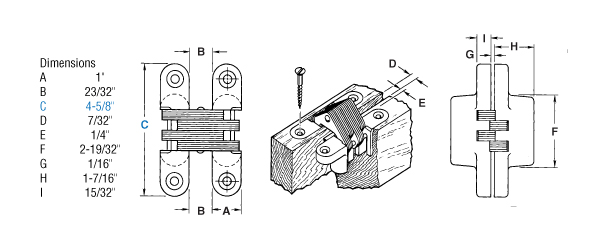

Hinge Dimensions
SOSS Model 216 Dimensions
