Dorma CPA440 Center Hung Pivot Set

<< Previous in Center Hung Pivot Sets Next in Center Hung Pivot Sets >>

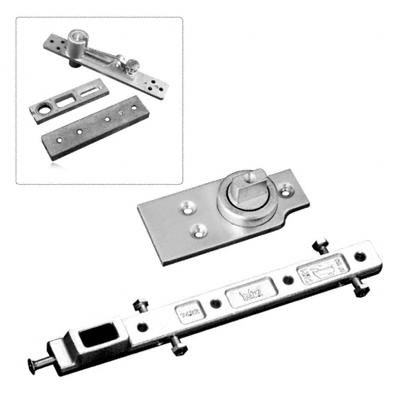

Dorma CPA440 Pivot

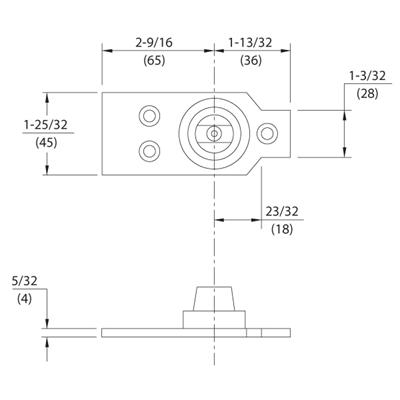

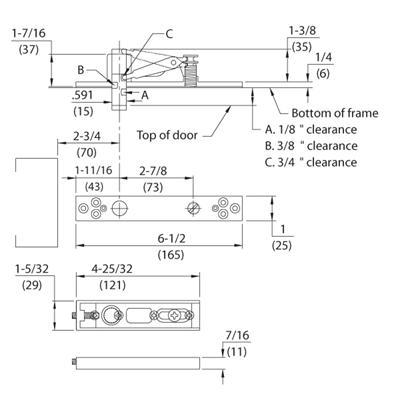

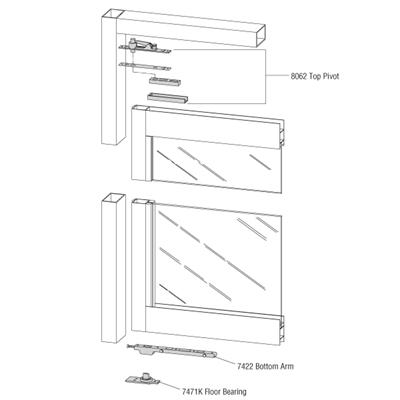

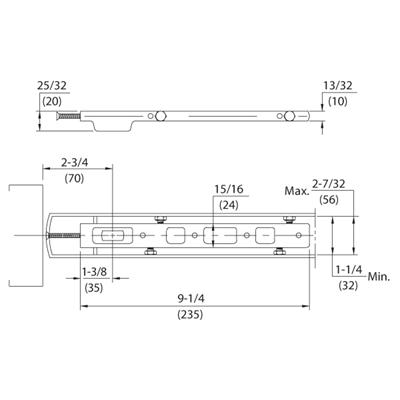

Dorma CPA440 PivotCPA440 Application Drawing8062 Top Pivot Dimensions7422 Bottom Arm Dimensions7471K Floor Bearing Dimensions
MSRP: $330.00
Price: $181.50
Manufacturer: Dorma
MFG Model #: CPA440

Specify Model Options

Finish:
Dorma

Dorma Model CPA440 Pivot Set

Center Hung Pivot Set for Aluminum Door and Frame - Complete Package

Application
Aluminum Doors
Weight to 440 lbs.
Door Width up to 4'-0"

Handing
Non-handed

Features
Complete Pivot Set includes 7471K Floor Bearing, 7422 Bottom Arm and 8062 Top Pivot.

  • Pivot point centered in thickness of door
  • Door must have radius on pivot edge
  • Doors do not return to center
  • Furnished with machine screws

Finish
Specify 605, 606, 612, 613, 625 or 626 (for Top Pivot Cover Plate and Bottom Pivot Base)

Bright Brass Satin Brass Satin Bronze Oil Rubbed Bronze Bright Chrome Satin Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 625 - Bright Chrome 626 - Satin Chrome
605 (US3) 606 (US4) 612 (US10) 613 (US10B) 625 (US26) 626 (US26D)
DownloadsFile Downloads
