Dorma BTS80/B Door Closer for Wood/Metal Door and Frame

Dorma Model BTS80/B Door Closer

Double Acting Center Hung Floor Closer - Complete "B" Package for Wood/Metal Door and Frame

Application
Double Acting
Interior or Exterior Doors
Weight to 660 lbs.
Interior Door Width to 4'-6"
Exterior Door Width to 4'-0"

Spring Size
Specify ANSI Size 3 (Barrier Free), 4 (Standard) or 6 (Strong)

Hold Open
Field Selectable Multi Point hold open between 75° and 175° or Delayed Action Non-Hold Open

Handing
Non-handed

File Downloads

Template

Installation

Cut Sheet

Features

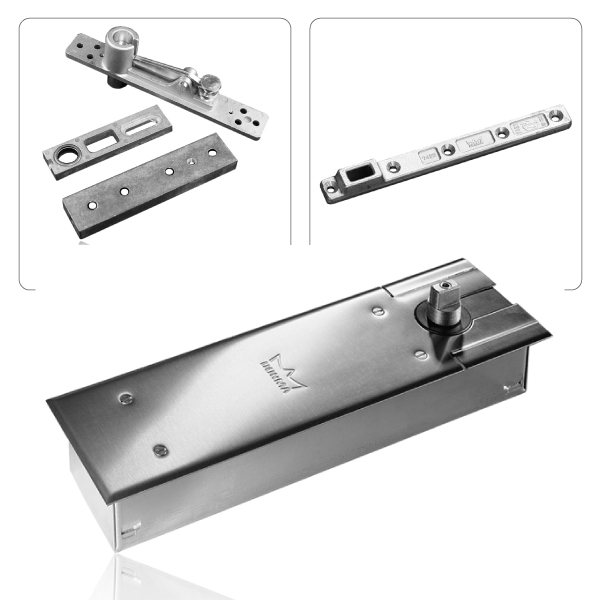

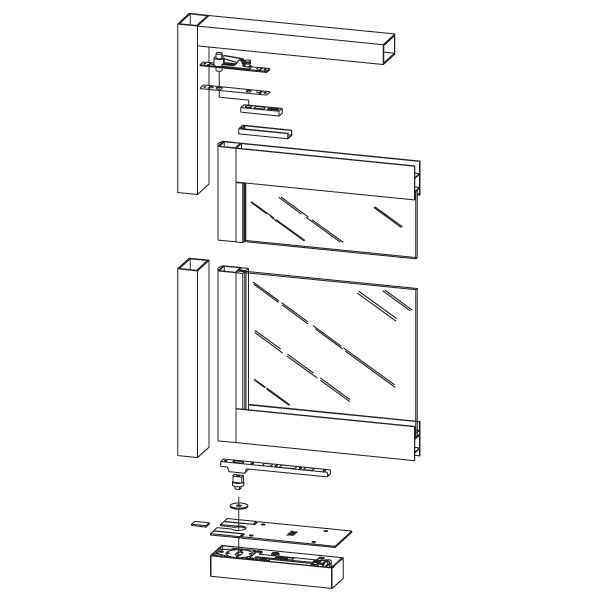

Complete Package for Wood/Metal Door and Frame includes Dorma Model BTS80 Closer Body and Cement Case, 8062 Top Pivot, 7421 Bottom Arm, 74010 (3/4") Spindle and 7410 Cover Plate

• Available ANSI Size 3 (Barrier Free), 4 (Standard) or 6 (Strong)
• Compact closer body and cement case 2-3/8" deep suited for thin slab concrete construction
• Closer body is non-handed
• Accommodates doors weighing up to 660 lbs. and measuring up to 4'-6" wide
• Mechanical backcheck at approximately 70° (Size 3, BFE without backcheck feature)
• Dual thermostatic control valves combined with hydraulic fluid provide controlled closing from 175°
• Selectable Multi Point Hold Open
• Delayed Action is functional when hold open is not engaged.
• A pressure relief valve protects closer from damage caused by forced closing
• Closer adjustment in cement case provides 1/4" lateral/longitudinal and 5/32" height adjustment

Listed specifications for models stocked and available for shipment from Epivots online store. Please call for special finish or other configuration requirements.

Finish
Specify 605, 606, 613, 619, 625 or 626

Bright Brass	Satin Brass	Dark Bronze	Satin Nickel	Bright Chrome	Satin Chrome
605 (US3)	606 (US4)	613 (US10B)	619 (US15)	625 (US26)	626 (US26D)
