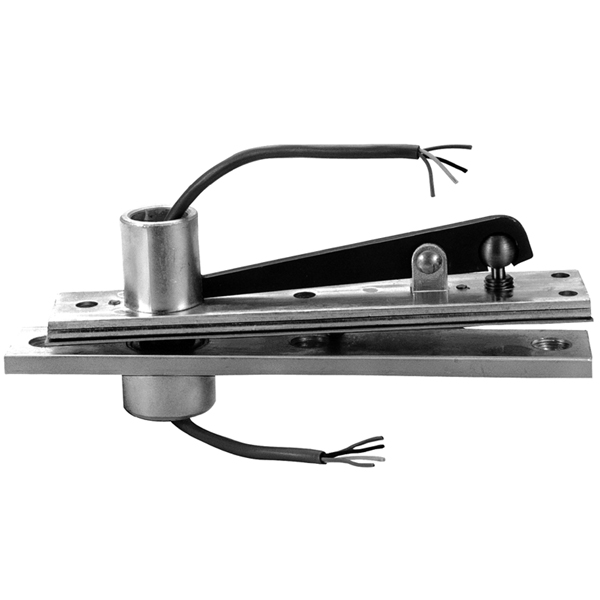

Rixson E-H340 Heavy-Duty Top Pivot 4-Wire

Rixson Model E-H340 Top Pivot

Power Transfer Center Hung Heavy-Duty Top Pivot x 4-Wire

Application
Fully Concealed
Heavy-Duty Top Pivot for Power Transfer (4-Wire)
Walking Beam Type 11/16" Dia.

Handing
Non-handed

File Downloads

Template

Installation

Cut Sheet

Features

• Heavy-Duty top pivot for power transfer
• Stocked in 4-Wire configuration (other configurations available via special factory order)
• Heavy-duty needle bearing
• Can be used with any center hung bottom pivot or floor closer
• Walking beam-type pivot 11/16" diameter pivot pin with 3/4" engagement
• Completely concealed when door is closed
• Furnished with wood and machine screws

Finish
Specify 605, 606, 613, 619, 622, 625 or 626

Bright Brass	Satin Brass	Dark Bronze	Satin Nickel	Matte Black	Bright Chrome	Satin Chrome
605 (US3)	606 (US4)	613 (US10B)	619 (US15)	622 (US19)	625 (US26)	626 (US26D)
