Dorma CP440 Center Hung Pivot Set

Dorma Model CP440 Pivot Set

Center Hung Pivot Set for Wood or Steel Doors and Frame - Includes Top and Bottom Pivot

Application
Center Hung
Double or Single Acting
Wood or Steel Door and Frame
Weight to 440 lbs.
Door Width up to 4'-0" W

Handing
Non-handed

File Downloads

Template

Installation

Dorma LM Series Catalog

Features

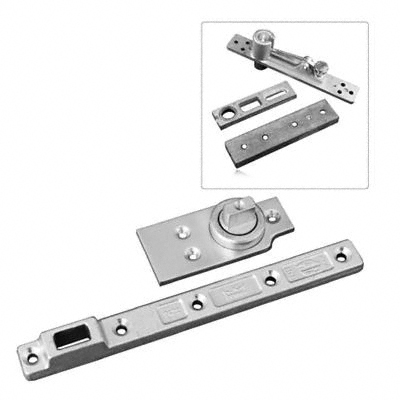

Complete Pivot Set includes Dorma 7471K Floor Bearing, 7421 Bottom Arm and 8062 Top Pivot

• Pivot point centered in thickness of door
• Floor bearing mounted to floor surface
• Top pivot mortised into top jamb or header
• Door must have radius on pivot edge
• Doors do not return to center
• Furnished with machine screws

Finish
Specify 605, 606, 612, 613, 618, 619, 625 or 626

Polished Brass	Satin Brass	Satin Bronze	Dark Bronze	Polished Nickel	Satin Nickel	Polished Chrome	Satin Chrome
605 (US3)	606 (US4)	612 (US10)	613 (US10B)	618 (US14)	619 (US15)	625 (US26)	626 (US26D)
